C-Quad 63

2.720,003.440,00

A master distribution unit. Fitted with an adjustable 250A main breaker and four individually protected 63A 3-phase outputs. These are fitted with Harting connectors tand the 4th output is also available on a CEE 63A connector. Input options include Powerlock and CEE 125A.
Clear
SKU: N/A Category:

The C-Quad 63 was created to make larger systems using C12 and C24 possible. Use the C12/C24’s on their own for smaller projects and together with the C-Quad 63 to power large events.

The combination of C12, C24 and C-Quad 63 enables a degree of flexibility not previously possible.

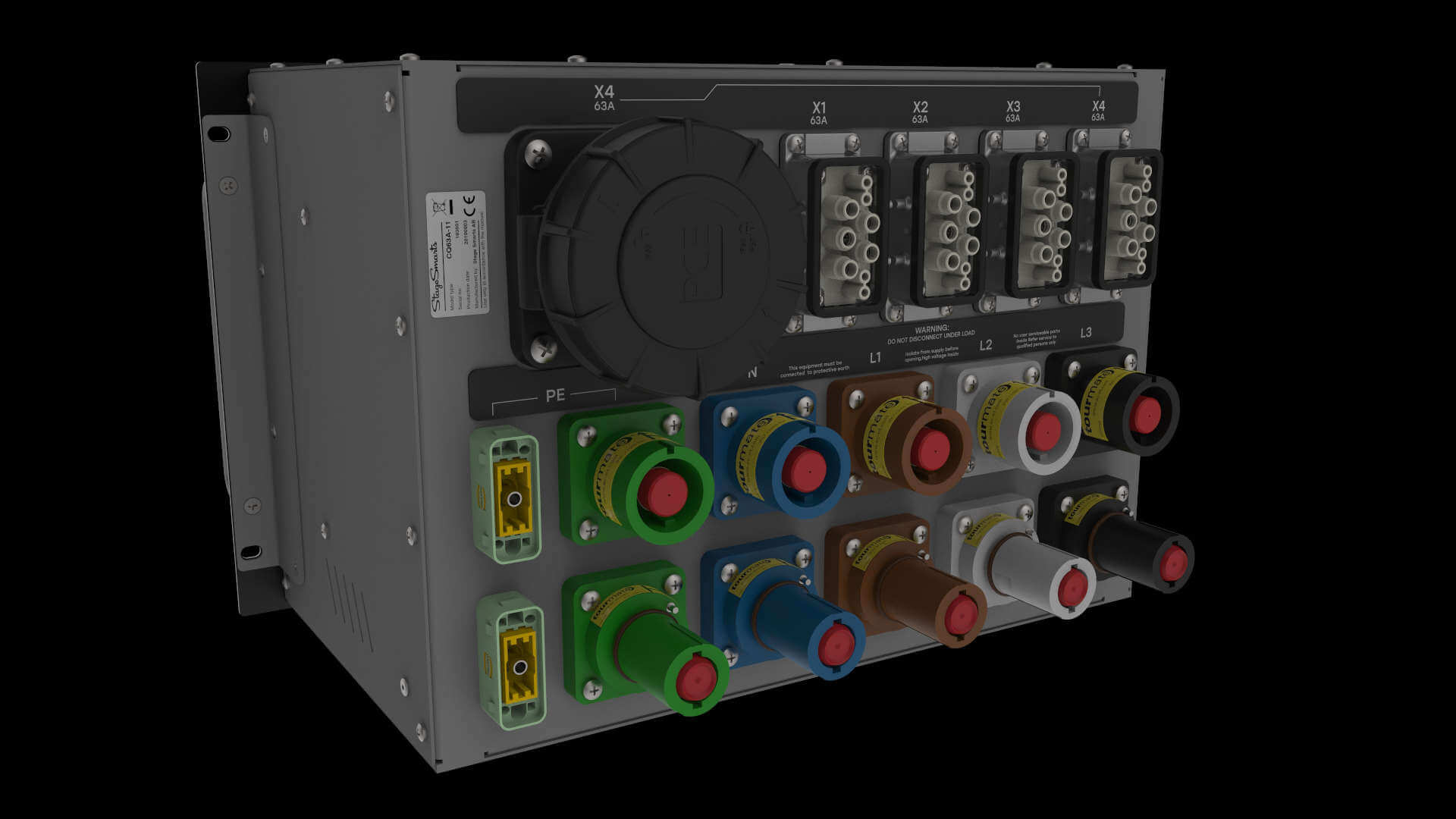

Input options include 400A Powerlock connectors with the option of 100% load rated Powerlock through connections as well as CEE 125A 3-phase (5-pole).

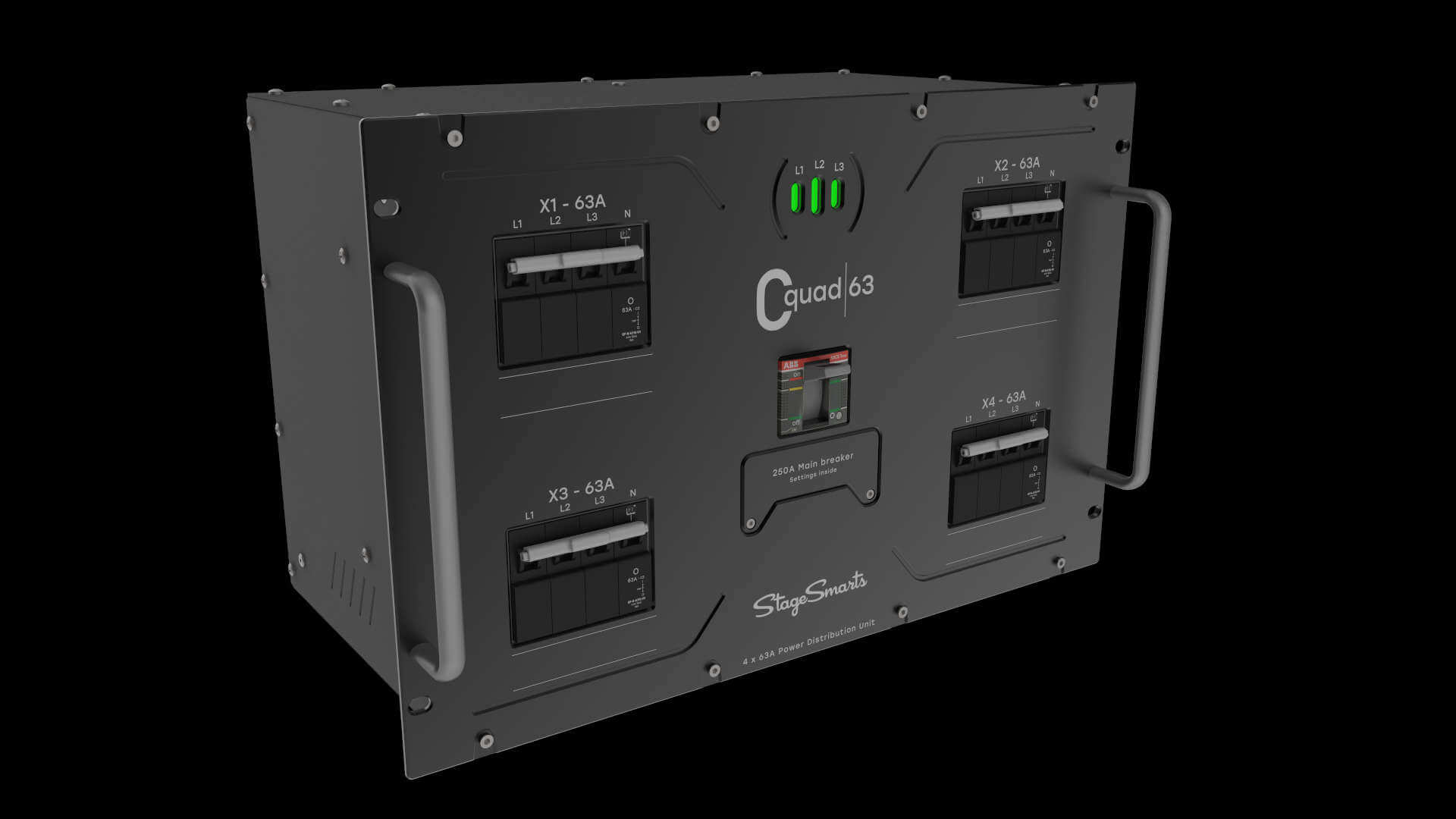

An adjustable 250A main breaker (MCCB) provides overall protection and each of the four outputs is protected by a 4-pole 63A hy-mag breaker. Output connectors are the same type Harting 63A connectors fitted to the C12 and C24. In addition, the 4th output is also available on a CEE 63A 3-phase (5-pole) connector.

Each C-Quad 63 is also fitted with two HAN GND connectors to facilitate external ground and linking especially at outdoor events (compatible with the Connex and Major cPOT systems).

Read more on the C-quad product page

Additional information

Shipping dimensions.

Weight 26 kg
Dimensions 61 × 41 × 58 cm
